Description

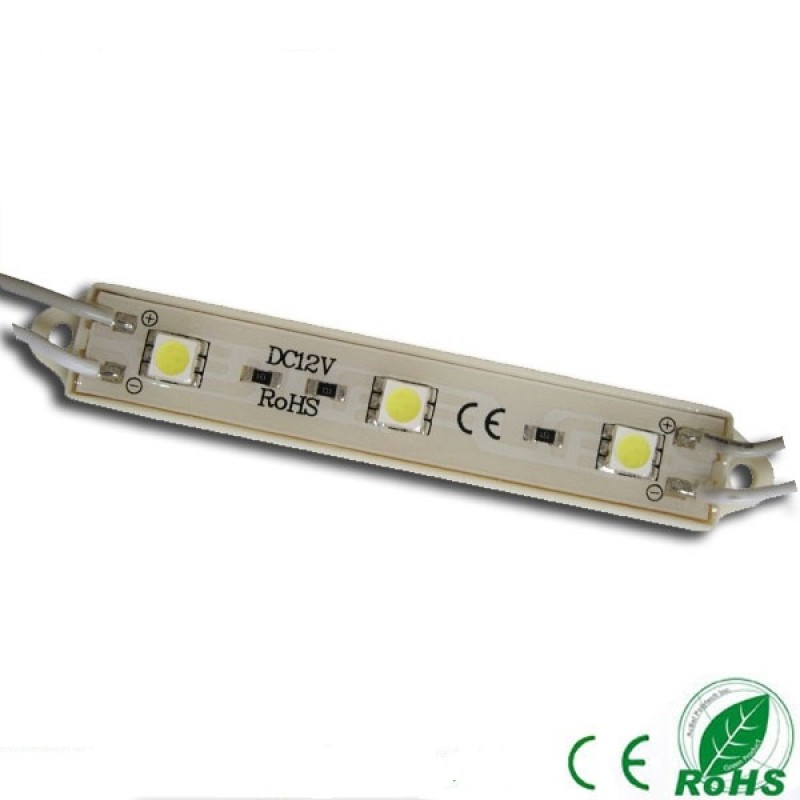

3528 SMD LED as light source, super luminous flux
Large viewing angle, even lighting, low attenuation
Best cost performance, high color consistency
Energy saving, environment-friendly, long lifespan 50000hrs.
Suitable for channel letters and light boxes backlighting etc

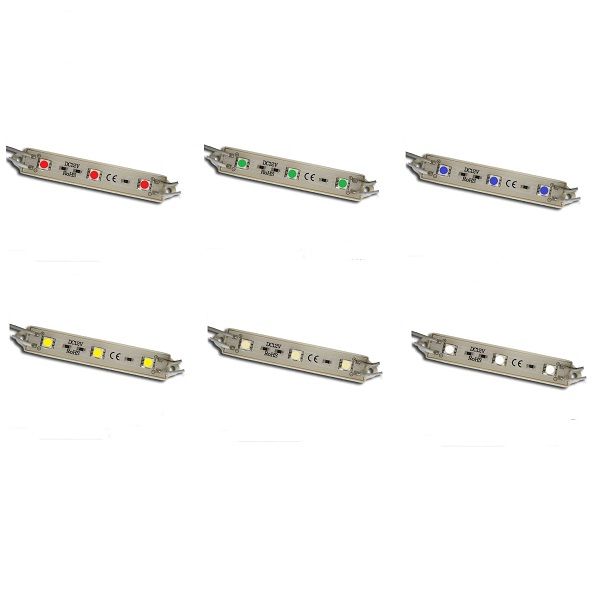

Luminous flux (lm): red 3,3lm, green 9lm, blue 2,7lm, yellow 3lm, warm-white 15lm, white 15lm
Wavelength (nm/K): red 619-635nm/K, green 512-528nm/K, blue 463-475nm/K, yellow 584-595nm/K, warm-white 2700-3000nm/K, white 5500-6500nm/K
Viewing angle: 120°
LED qty/Module: 3pcs
Working voltage (V): 12 V DC, constant voltage
Power consumption (W): Max: 0,3W
Wires: the length of 50mm

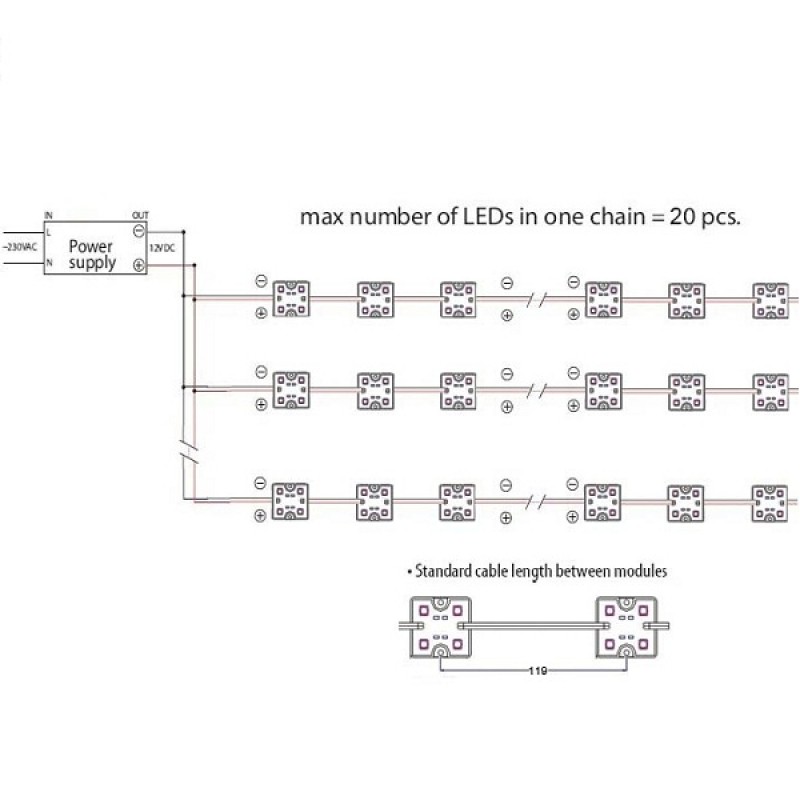

Stand length in serial connection: 20pcs
Maximum length in serial connection : =20pcs

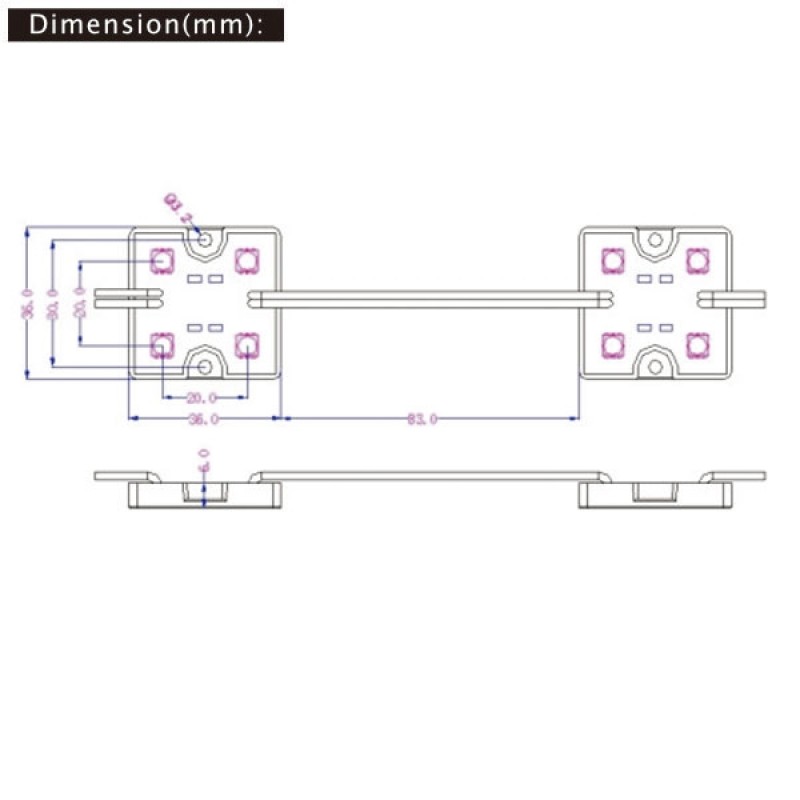

Dimension: 38.2 x 11.6 x 4.0mm
Double-side adhesive: 64mm,double-sided adhesive
Working Temperature: -40- +50
Storage Temperature: -50- +60
IP grade: IP65
Modules can be expanded indefinitely.
After 20 units is an additional power supply needed
Modules are being sent as a chain cable, up to 20 pieces
To operate, a power supply and dimmer (optional) is required
Matching accessories, see below or click here: power supply and Dimmer
