Description

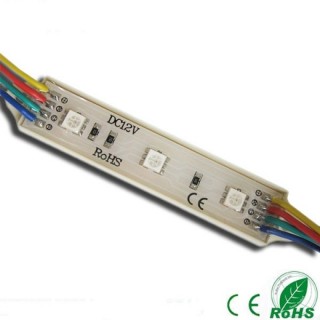

5050 SMD LED as light source, super luminous flux, large viewing angle, even lighting, low attenuation.
Best cost performance, high color consistency.
Energy saving, environment-friendly, long lifespan 50000hrs.
Suitable for channel letters and light boxes backlighting etc.
Luminous flux (lm): red 3lm, green 9,6lm, blue 2,4lm
Wavelength (nm/K): red 619-635nm/K, green 512-528nm/K, blue 463-475nm/K
Viewing angle: 120°
LED qty/Module: 3pcs
Working voltage (V): 12 V DC, constant voltage
Power consumption (W): Max: 0,72W
Wires: the length of 100mm
Stand length in serial connection: 20pcs
Maximum length in serial connection : =20pcs

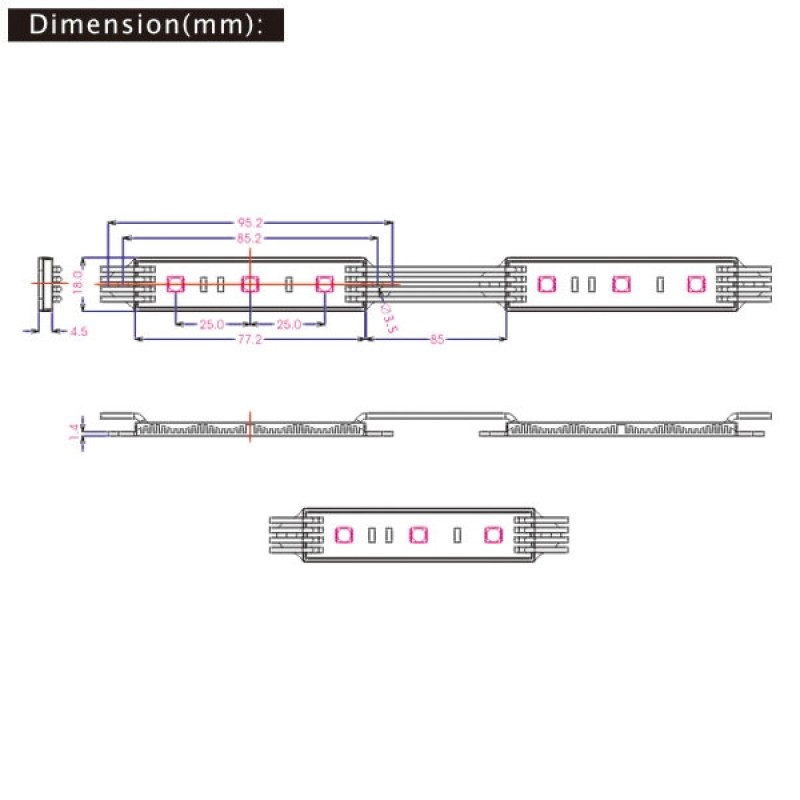

Dimension: 77.2*15*4.5mm
Working Temperature: -40?- +50?
Storage Temperature: -50?- +60?
IP grade: IP65
Modules can be extended after 20 pieces is an RGB signal amplifier is required

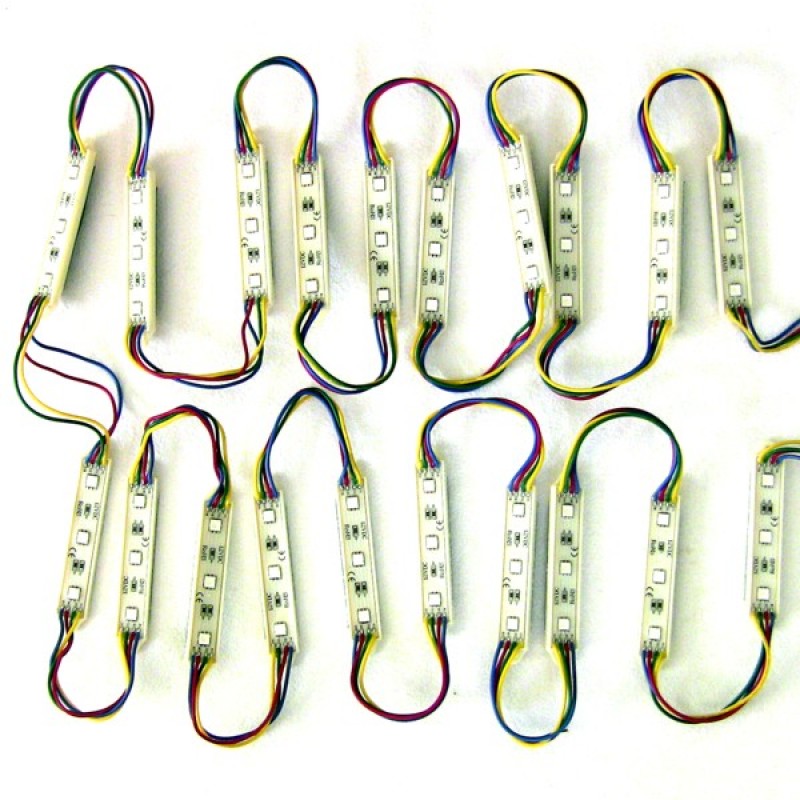

Modules are being sent as a chain cable, up to 20 pieces
For Operating a controller / controller and a power supply needed
Matching accessories, see below or click here: for controllers, for power supply
